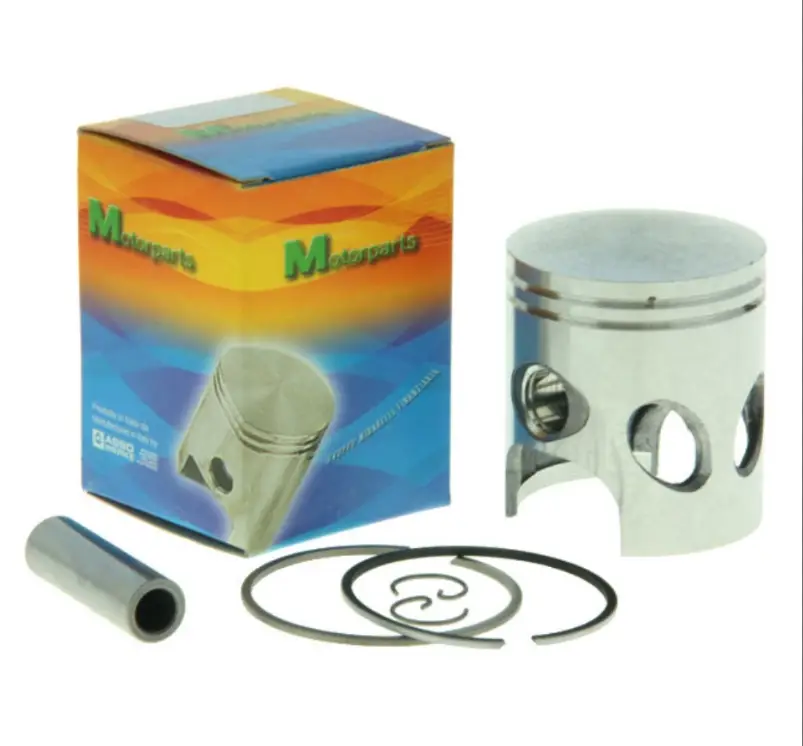

Piston Aprilia Mojito – Gilera – Piaggio Free – Liberty – NRG – Typhoon – Vespa ET2 – LX AC 2T 70cc D48.00 mm bolt 12 (Top – Asso Werke)

Denumire produs: Piston Aprilia Mojito – Gilera – Piaggio Free – Liberty – NRG – Typhoon – Vespa ET2 – LX AC 2T 70cc D48.00 mm bolt 12 (Top – Asso Werke)

Piston Aprilia Mojito – Gilera – Piaggio Free – Liberty – NRG – Typhoon – Vespa ET2 – LX AC 2T 70cc D48.00 mm bolt 12 (Top – Asso Werke)

Echivalenta Meteor Pistons: PC2001000

Observatii:

• producator piston: Asso Werke;

• compatibil cu kiturile Top Performance;

• compatibil cu seturile Top Performance cod KT00086 si cod KT00091.

Caracteristici – cote piston:

• diametru piston (D): 48.00 mm – cota standard;

• distanta mijloc bolt – cap piston (C): 25.50 mm;

• calota (H): B-2.5 mm;

• lungime totala piston (L): 54.00 mm.

Caracteristici – cote bolt (d):

• diametru exterior bolt: 12 mm;

• diametru interior bolt: 8 mm;

• lungime bolt: 40 mm.

Caracteristici – cote segmenti:

• numar segmenti: 2;

• grosime segmenti: 2 segmenti 1.50 mm latime;

• tip segmenti:

– 1 segment necromat;

– 1 segment cromat;

• inchidere segmenti: laterala.

Compatibilitati:

• Aprilia 50cc: Mojito 04-08;

• Aprilia 50cc: Scarabeo Street 2T RST 06-09;

• Aprilia 50cc: Sport City One 2T 08-09;

• Derbi 50cc: Atlantis 2T Euro 2 07-09;

• Derbi 50cc: Atlantis 2T 10;

• Derbi 50cc: Atlantis City 2T 03-06;

• Derbi 50cc: Atlantis 2T 02;

• Derbi 50cc: Atlantis Two Chic 2T 05;

• Derbi 50cc: Boulevard 2T 09;

• Derbi 50cc: Sonar 2T 09;

• Gilera 50cc: Ice 01-05;

• Gilera 50cc: Stalker 05-09;

• Gilera 50cc: Storm Euro 2 07;

• Piaggio 50cc: Diesis 01;

• Piaggio 50cc: Fly 2T 05-07;

• Piaggio 50cc: Fly 2T 06-09;

• Piaggio 50cc: Liberty 2T 96-99;

• Piaggio 50cc: Liberty 2T 99-05;

• Piaggio 50cc: Liberty 2T 06-08;

• Piaggio 50cc: Liberty PTT Euro 2 04-05;

• Piaggio 50cc: NRG 94-96;

• Piaggio 50cc: NRG MC2 96-99;

• Piaggio 50cc: NRG Extreme 98-99;

• Piaggio 50cc: NRG MC3 01-04;

• Piaggio 50cc: NRG Power DT 06-08;

• Piaggio 50cc: Typhoon 94-97;

• Piaggio 50cc: Typhoon X 98-99;

• Piaggio 50cc: Typhoon XR 00;

• Piaggio 50cc: Typhoon 01-09;

• Piaggio 50cc: Zip 92-93;

• Piaggio 50cc: Zip 94-96;

• Piaggio 50cc: Zip Bimodale 93-96;

• Piaggio 50cc: Zip RST 96-99;

• Piaggio 50cc: Zip SP RST 96-99;

• Piaggio 50cc: Zip 2T 00-04;

• Piaggio 50cc: Zip 2T 08-12;

• Vespa 50cc: Vespa ET2 96-99;

• Vespa 50cc: Vespa ET2 99-05;

• Vespa 50cc: Vespa LX 2T 05-08;

• Vespa 50cc: Vespa LX 2T 06-09;

• Vespa 50cc: Vespa LX Touring 2T 08-11;

• Vespa 50cc: Vespa LXV 2T 08-10;

• Vespa 50cc: Vespa S 2T 07-11.
